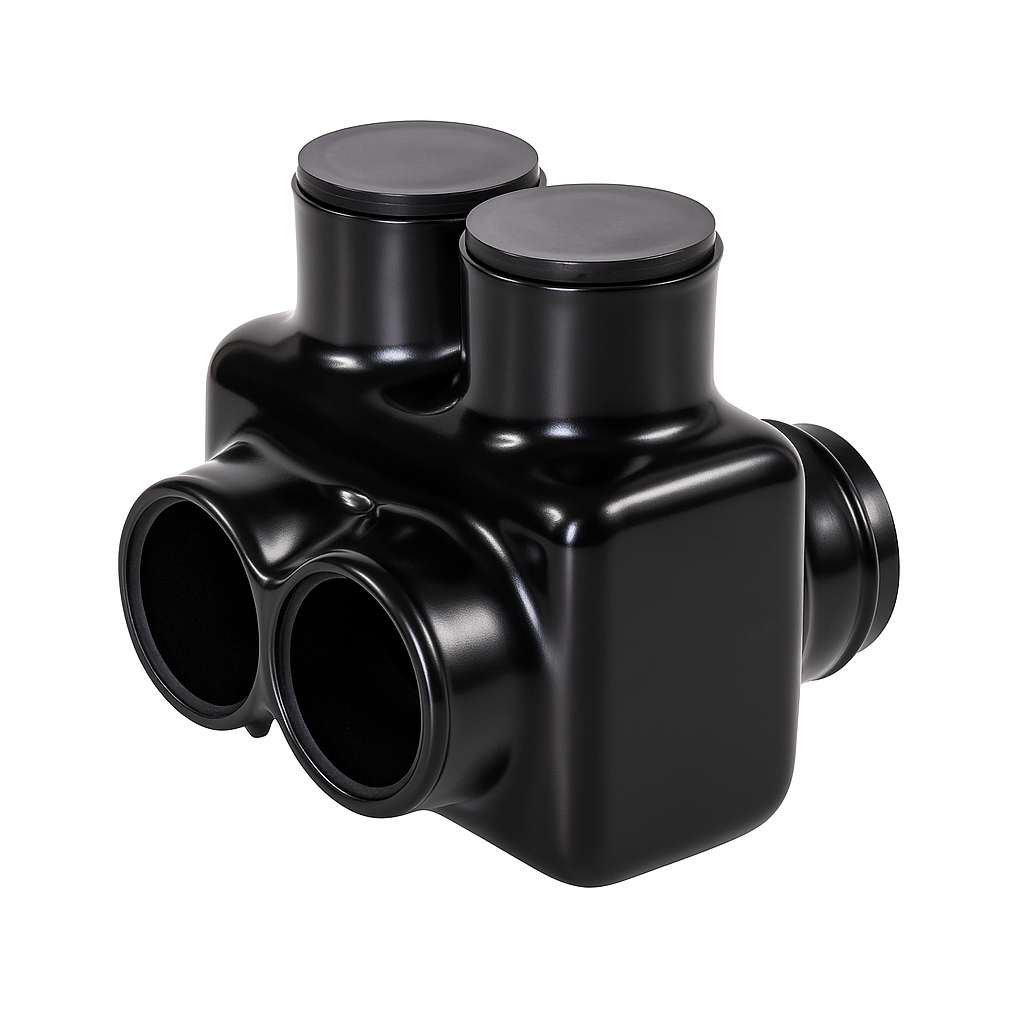

Malibu IC-2 Two-Port Dual Entry Splice Insulated Connector for #4, #2, 1/0, 2/0, 3/0, 250 MCM, and 500 MCM

Features:

• Material: Made from durable 6061-T6 aluminum for long-lasting performance.
• Insulation: Coated with rugged, high-dielectric plastisol for superior insulation and protection.
• Pre-filled with Oxide Inhibitor: Ensures optimal conductivity and corrosion resistance.
• Easy Access: Designed for quick re-entry, simplifying changes, inspection, and troubleshooting.
• Clear Markings: Wire size ranges are clearly labeled for fast identification.
• CU9AL Dual-Rated: Suitable for both copper and aluminum wires.

Specifications:

• Temperature Range: Operates efficiently between -49°F and 194°F (-45°C to 90°C).
• Voltage Rating: Rated for up to 600 volts.
• Certification: Meets ANSI C119.4 standards and is UL Certified.
• Compatibility: Compatible with 90°C cables.

Benefits:

• Strong & Reliable Connections: Built to handle diverse wire sizes and provide secure, long-lasting connections.
• High-Quality Insulation: Protects against wear and tear, ensuring durability in various environments.
• User-Friendly: Easy to identify and adjust with clearly marked wire sizes.
• Versatility: Works with both copper and aluminum wires for added flexibility.

Available Sizes (Wire Range):

• #4-14
• #2-14
• 1/0-14
• 2/0-14
• 3/0-14
• 250 MCM-6
• 500 MCM-6

[Download the Specification Sheet]
