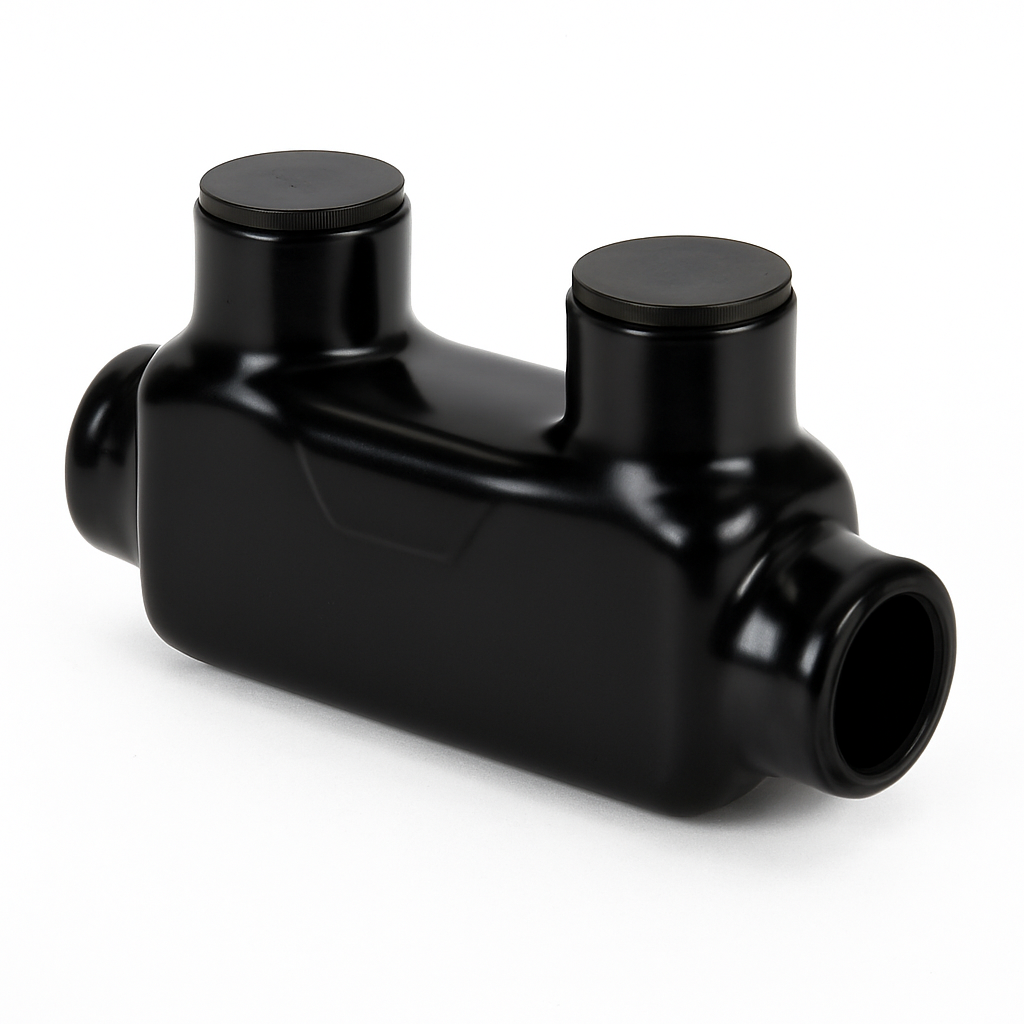

Malibu IC-1 One-Port In-Line Splice Insulated Connector for #4, #2, 1/0, 2/0, 3/0, 250, 500, 600 MCM

• Construction: 6061-T6 Aluminum
• Insulation: Rugged high-dielectric plastisol dipped coating
• Oxide Inhibitor: Pre-filled for enhanced protection

Features:

• Easy re-entry for changes, inspection, or troubleshooting
• Connector markings for maximum and minimum wire sizes
• Dual-rated for copper and aluminum wire (CU9AL)
• Temperature Range: -49°F to 194°F (-45°C to 90°C)

Specifications:

• Voltage Rating: 600 volts
• Rated for use with 90°C cables
• Standards: ANSI C119.4, UL Certified

DOWNLOAD: Specification Sheet

Sizes & Wire Ranges:

1. #4-14
2. #2-14
3. 1/0-14
4. 2/0-6
5. 3/0-6
6. 250 MCM-6
7. 500 MCM-6
8. 600 MCM-6

Application:

• Versatile solution for various wire sizes and applications

Benefits:

• Durable construction for a secure and reliable connection
• High-quality insulation for longevity and protection
• Easy identification and adjustment with wire size markings
• Wide temperature range for diverse environmental conditions
• Dual-rated for flexibility with copper and aluminum wires

Certifications:

• Complies with ANSI C119.4 standards
• UL Certified for safety and performance

Choose our One-Port In-Line Insulated Connector for a reliable, efficient, and safe electrical connection. Available in multiple sizes to suit your specific needs, this connector combines durability, versatility, and ease of use to meet the highest industry standards.
