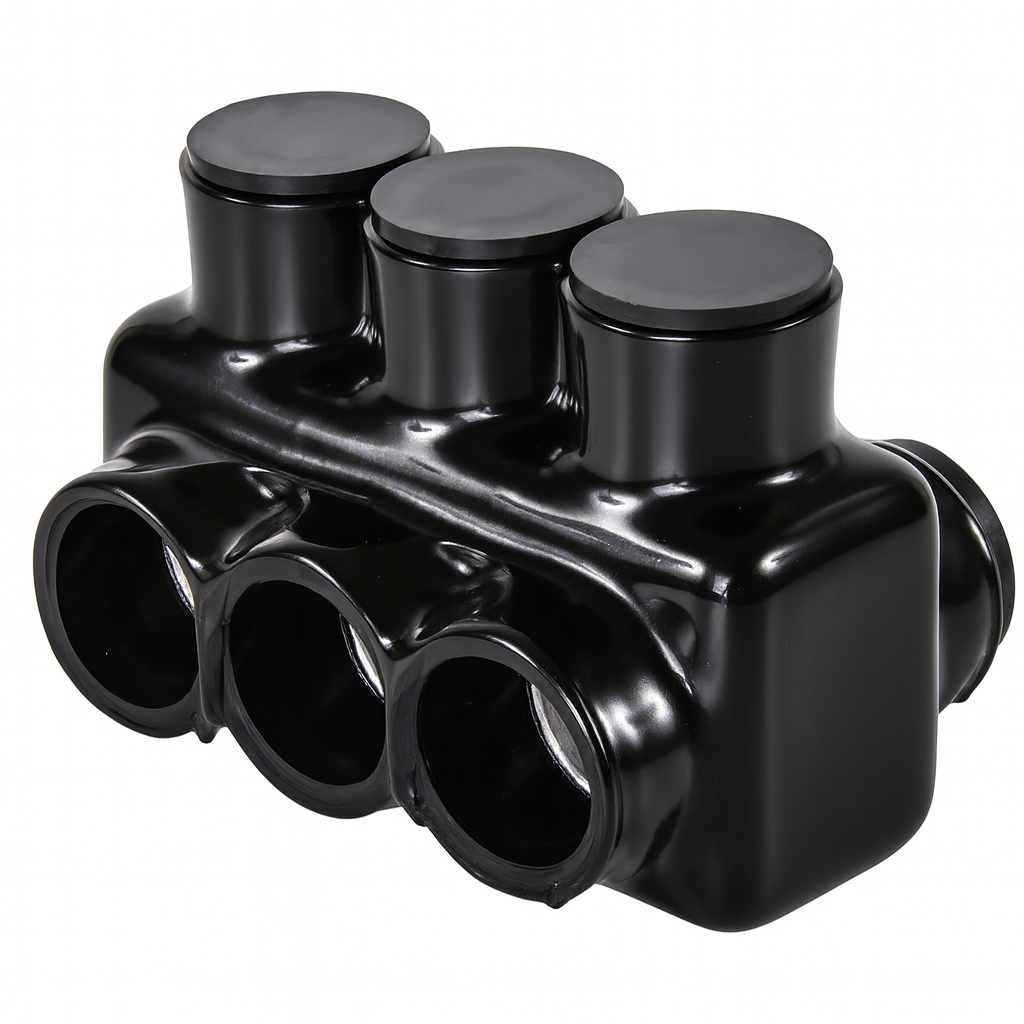

Malibu IC-3 Three-Port Multi-Cable Splice Insulated Connector for #4, #2, 1/0, 2/0, 3/0, 250 MCM, and 500 MCM

Features

• Material: High-strength 6061-T6 Aluminum
• Insulation: Rugged, high-dielectric plastisol coating for added durability
• Oxide Inhibitor: Pre-filled to prevent corrosion
• Easy Access: Designed for simple re-entry, inspection, and troubleshooting
• Wire Size Markings: Clearly labeled maximum and minimum wire sizes for easy identification
• Dual Rated: Suitable for both copper (CU) and aluminum (AL) wires (CU9AL rated)
• Temperature Range: Operates between -49°F to 194°F (-45°C to 90°C)
• Voltage Rating: Rated for up to 600 volts
• Cable Compatibility: Rated for use with 90°C cables
• Certifications: ANSI C119.4 compliant and UL Certified for safety

Applications

This versatile connector is ideal for various wire sizes and applications, providing a durable and reliable connection in a wide range of environments.

Benefits

• Durable & Secure: Built for long-term, reliable performance
• High-Quality Insulation: Protects wires and ensures longevity
• Clear Identification: Wire size markings simplify installation and adjustments
• Wide Temperature Range: Suitable for harsh environmental conditions
• Flexible Use: Dual-rated for copper and aluminum wires, offering more flexibility in wiring options

Available Sizes (Wire Range)

• #4-14
• #2-14
• 1/0-14
• 2/0-14
• 3/0-14
• 250 MCM-6
• 500 MCM-6

Download

Specification Sheet
