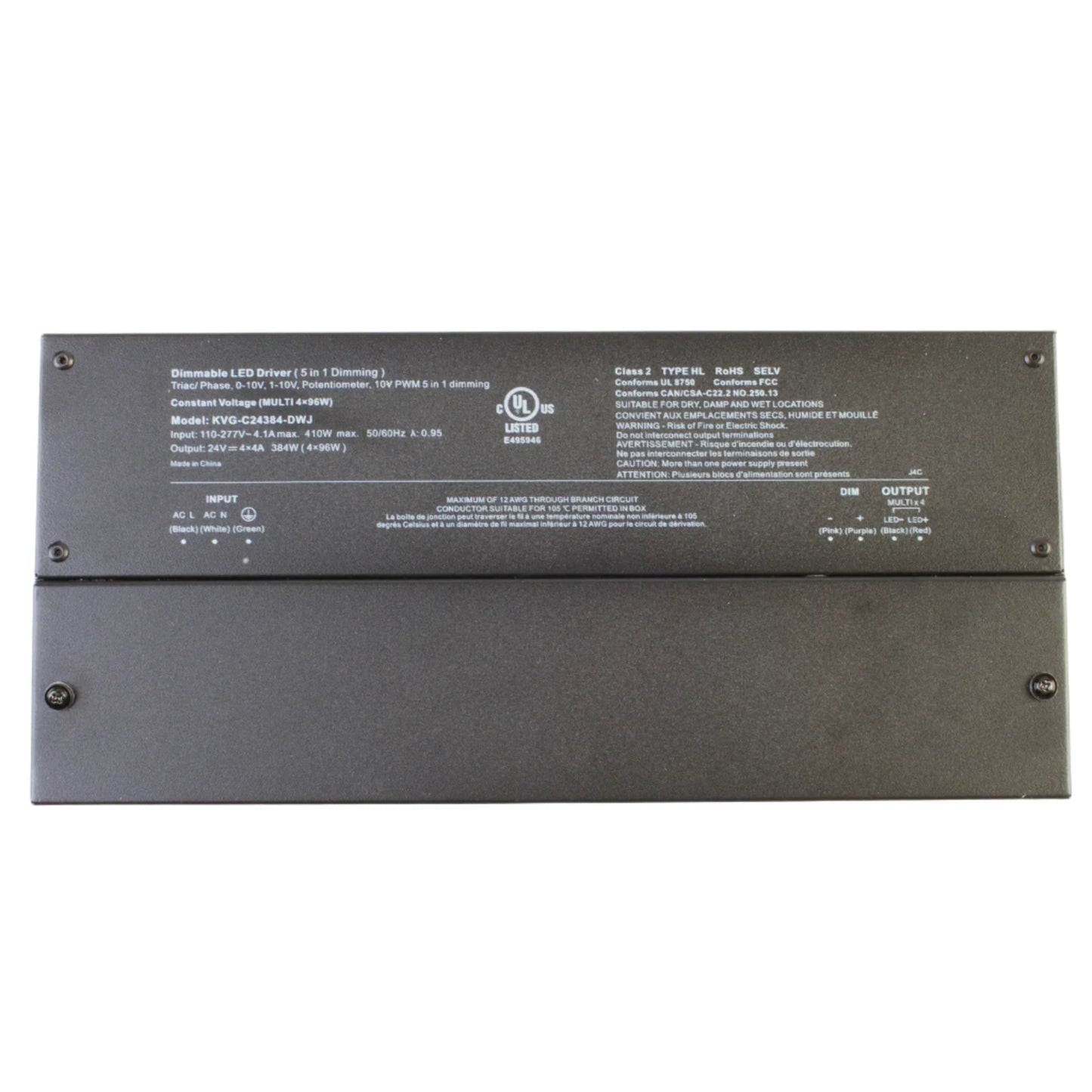

Malibu Stardust™ M5C2-384W-24V 24V 384W Class 2 Multi-Channel TRIAC Dimmable LED Driver
The Malibu M5C2-384W-24V Multi-Channel TRIAC Dimmable LED Driver is a robust and versatile power solution for 24V LED systems. Engineered for professional-grade applications, this driver supports advanced 5-in-1 dimming capabilities, including TRIAC, 0-10V, 1-10V, Potentiometer, and 10V PWM dimming. With its rugged NEMA-rated metal housing, this driver ensures reliable performance in dry, damp, and wet environments, making it ideal for both indoor and outdoor applications.
With four independent channels delivering 96W each, the total 384W output provides precision and stability for demanding lighting setups. Certified to UL, cUL, FCC, and RoHS standards, the M5C2-384W-24V guarantees exceptional performance, safety, and long-term reliability.
Key Features
- Multi-Channel Power: Four independent channels, each providing 96W, for a total power capacity of 384W.
- 5-in-1 Dimming Technology: Compatible with TRIAC (forward-phase and reverse-phase), 0-10V, 1-10V, Potentiometer, and 10V PWM dimming systems.
- Flicker-Free Dimming: Provides dimming ranges from 100% to 0% with stepless, ultra-deep dimming precision.
- Energy-Efficient Performance: Operates at up to 91% efficiency at 277VAC, reducing energy consumption and operational costs.
- Durable Construction: Encased in a NEMA-rated metal housing for reliable use in wet, damp, and dry environments.
- Advanced Safety Protections: Includes overload, short-circuit, and over-temperature safeguards for secure operation.
- Compact and Lightweight: Dimensions: 12.72" x 5.53" x 2.04" (L x W x H), weight: 6.28 lbs, for easy installation.
- Certified Quality: Complies with UL, cUL, FCC, and RoHS standards for safe and reliable performance.
- Extended Warranty: Backed by a 7-year manufacturer warranty for peace of mind.
Ideal Applications
- LED signage and moving signs
- Residential and commercial lighting systems
- Architectural and decorative lighting
Specifications
- Output Voltage: 24V DC
- Rated Current: 4A per channel
- Rated Power: 384W (96W per channel)
- Input Voltage Range: 110-277VAC
- Efficiency: Up to 91% at 277VAC full load
- Safety Certifications: UL, cUL, FCC, RoHS, CE
- Dimensions: 12.72" x 5.53" x 2.04"
- Weight: 6.28 lbs
FAQs
-
What dimming methods are supported?
This driver is compatible with TRIAC dimming (MLV and ELV), 0-10V, 1-10V, Potentiometer, and PWM dimming systems. -
Is this driver suitable for outdoor use?
Yes, the NEMA-rated metal housing is designed for use in wet, damp, and dry locations. -
What safety features are included?
The driver includes short-circuit, overload, and over-temperature protections, ensuring secure operation. -
What is the efficiency rating?
The driver operates at up to 91% efficiency at 277VAC, providing cost-effective performance.
